POWERPOINT

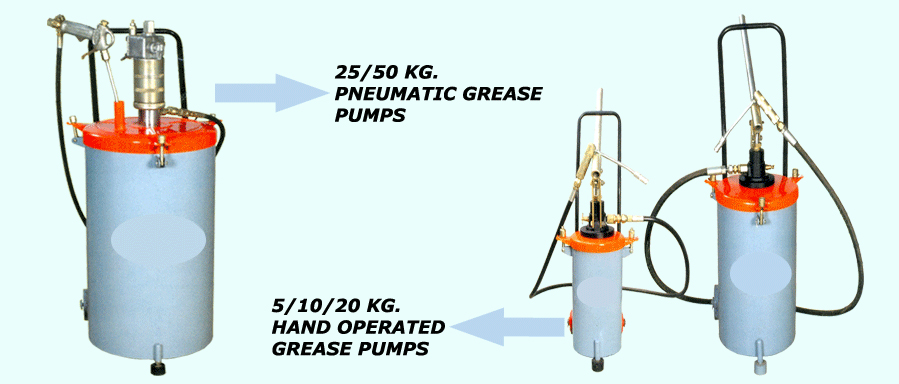

PNEUMATIC / HAND OPERATED GREASE PUMPS
We offer a wide range of superior quality pumps to suit your specific lubricating requirements. Its range of grease pumps is avaliable in Pneumatic & Hand operated models.
The pumps are specially designed with minimum moving parts for long & trouble free operation.
FEATURES OF ACCESSORIES :-
Swivel Arrangement :-
The swivel arrangement at both ends of hose for easy movement of the grease pump.
Pressure Plate :-
The pressure plates are provided to ensure easy flow of grease thereby making them extremely convenient to use.
Wheels :-
Wheels are provided in all models for easy mobility.
Hose :-
2 meter high pressure wire braided hose with 6.3 mm I.D. & Hydraulically crimped at both ends
TECHNICAL DATA :-
  PNEUMATIC OPERATED HAND OPERATED
MODEL
PEG 50 PEG 25
PEG 20 PEG 10 PEG 5
DRUM CAPACITY
50 KG. 25 KG.
20 KG. 10 KG. 5 KG.
OUT PUT AIR PRESSURE APPROX
300-400 gm/min 300-400 gm/min
3 gm/Stroke 3 gm/Stroke 3 gm/Stroke
WORKING PRESSURE RANGE OF AIR
4-10 Kg/Cm² 4-10 Kg/Cm²
- - -
RECOMMONED WORKING PRESSURE OF AIR
8 Kg/Cm² 8 Kg/Cm²
- - -
NORMAL BLOCKED PRESSURE
400 Kg/Cm² 400 Kg/Cm²
140 Kg/Cm² 140 Kg/Cm² 140 Kg/Cm²
